PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New

Name: PRYD120 High Speed Motor Core Automatic Paper Cup Forming MachineNew
Brand: PRINTYOUNG
Price: 8500 USD

Wholesale PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New from china suppliers

Brand Name : PRINTYOUNG

Model Number : PRY-D120

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD 8500 Set

Payment Terms : L/C, T/T

Supply Ability : 30 Sets per Month

Delivery Time : 30 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Cup Size : 3 ~ 19 oz

Suitable Paper Material : 150 ~ 380 g/m²

Capacity : 90 ~ 120 pcs/min

Power Source : 220V , 380V 50Hz

Total Power : 4 kw

Weight : 1300 kg

Air Pressure : 0.4 Mpa

Air Out-put : 0.6 m³/min

Contact Now

PRY-D120 High Speed Motor Core Automatic Paper Cup Forming Machine-New

PRY-D120 Paper Cup Forming Machine

Features

This type paper cup machine advantages:high performance,high efficiency,high quality.

1.This paper cup machine packing size only 2100 * 1100 * 1700 mm.20GP container can loading 6 sets,40HQ container can loading 12sets.Greatly reduce the transportation cost,is the ideal equipment for the production of small cup.

2.High production speed,making cup speed can be 70-90pcs/min,stable operation at 85 pcs/min,cost-effective than similar products.

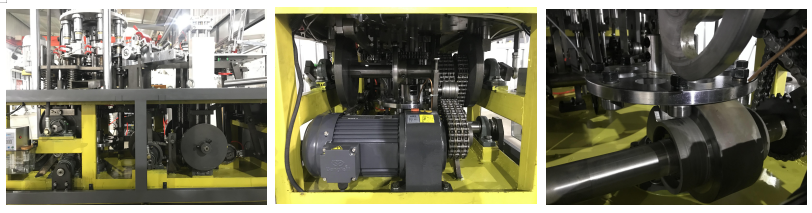

3.Aluminum disc indexing adopts open cam,maintenance and lubrication is more convenient and simple than gear box divider,the space of transmission parts in the machine is large,and it is easy to operate and maintain.It is superior to similar products on the market in all aspects,and can replace similar models on the market.

Technical Parameters

Model Number	PRY-D120
Cup Size	3 ~ 19oz (different size mold exchanged)
Suitable Paper Material	150 ~ 380 g/m² (single or double PE-coated paper)
Capacity	90 ~ 120 pcs/min
Power Source	220V , 380V 50Hz(please inform us your power in advanced)
Total Power	4 kw
Weight	1300 kg
Package Size	2100 * 1100 * 1700 mm
Air Pressure	0.4 Mpa
Air Out-put	0.6 m³/min

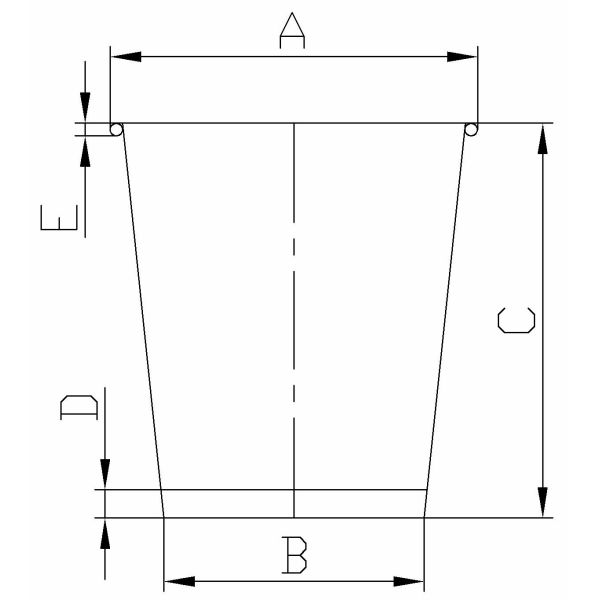

	Min	Max
A (top diameter)	30 mm	70 mm
B (bottom diameter)	30 mm	58 mm
C (total height)	30 mm	90 mm
D (bottom knurling depth)	4 mm	10 mm
E (rim diameter)	Usually Φ2---Φ3

Configuration

1.Three Times Paper Feeding

Paper can be well adjusted with three times feeding process,avoid the irregularity during folding paper fan.

2.Sensor System

Encoder and the sensor control the machine at the same time,one paper fan match one bottom,no waste.Failure warning,machine stopped automatically.

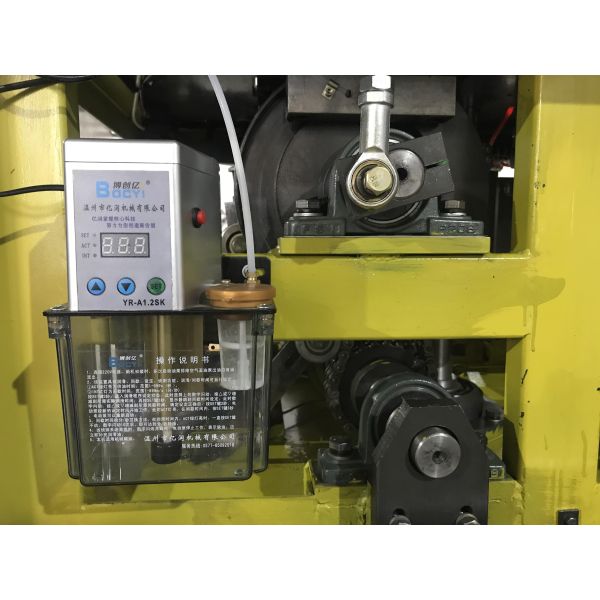

3.Self-lubrication System.

Maintaining oil go to machine every part needed,no need worker spraying oil manually.

4.Bottom Cutting

When give the bottom paper,sometimes the bottom paper will be turned over,cannot match the paper fan well,this machine shorten the process,give bottom directly,avoid the problem.

Optionals

1.Collection Table

Collection table can collect cup automatically,no need labor to count the cups one by one.

2.Ultrasonic

If you need double PE coated paper cups or paper gram higher than 250g/m²,we recommend to use ultrasonic paper cup machine.It can produce single PE coated paper cups and double PE coated paper cups.

Applications
